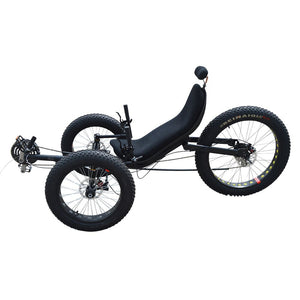

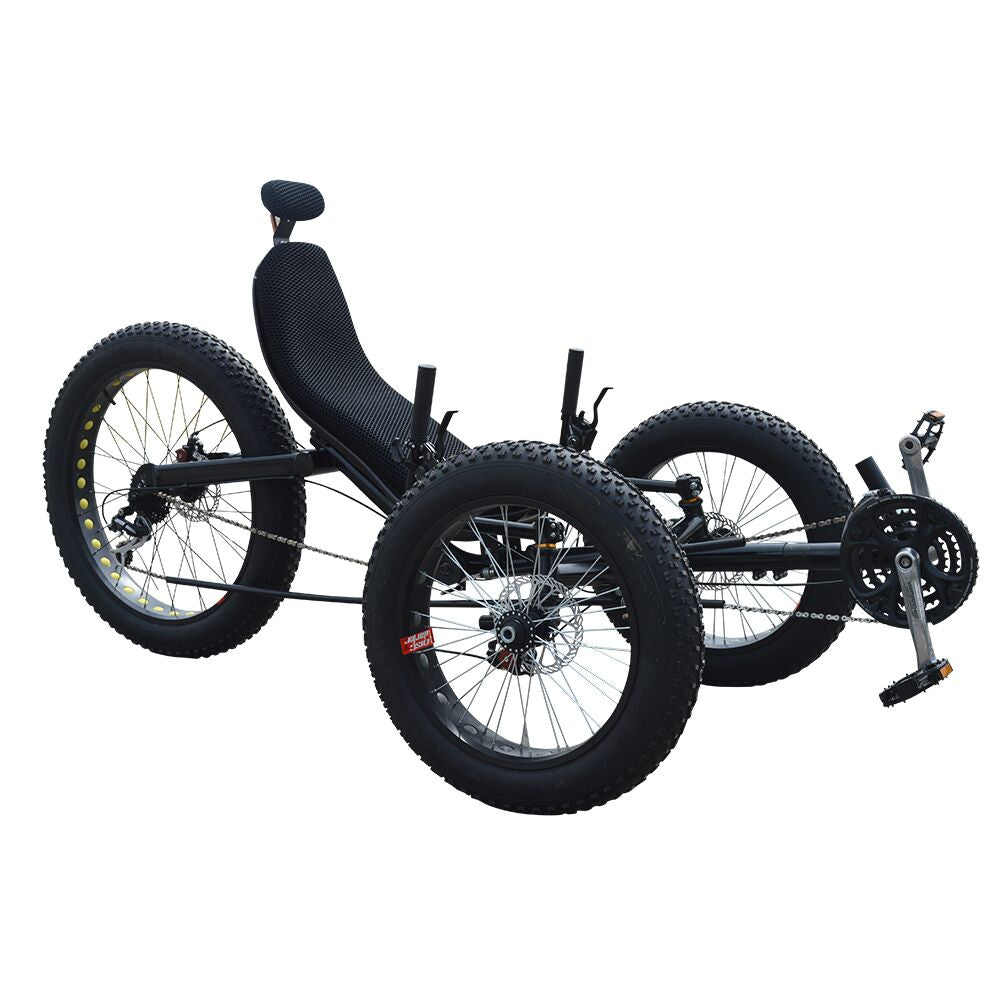

F010 Fat Tire Recumbent Trike
Fat tire is the hottest trend in the market. They are a blast to ride on trails, snow and sand. Honestly, for most of us, it's not going to be your only ride. So if you don't want to invest a fortune in it, go for M-F010.
Rock-solid component
Equipped with a fixed, rock-solid component specification, Shimano 24 gears drive train, BB5 disc brakes, CST tires and solid steel frame.
Folding
This fat trike is a big trike, but it is still with folded frame, allowing the trike to fold quickly and easily.
F010E

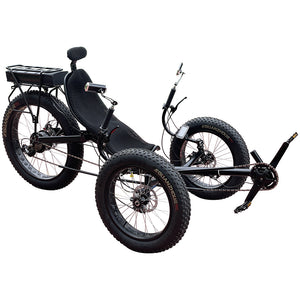

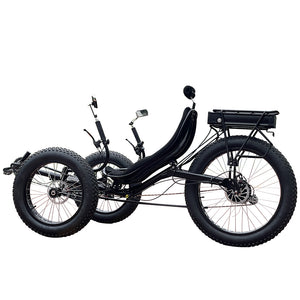

The Electric Fat Tire Recumbent Trike is a cutting-edge model designed for optimal performance and resilience. It boasts a 500w high torque sensor motor that yields remarkable driving force. Coupled with a robust 48V20A battery, the trike ensures a long riding range, making it perfect for long-distance traveling or off-road rides. Its fat tires provide excellent traction and stability even on rugged, bumpy terrains. If you seek an adventurous ride that does not compromise on comfort and effectiveness, this trike is the optimal choice. Its capabilities deliver a superb blend of power, versatility, and durability.
Technical Data
|
|
Components
|
|
Overall width
|
103 cm
|
Frame
|
High carbon steel
|
Overall height
|
98 cm
|
Seat
|
Ergo-mesh seat
|
Overall length
|
201 cm
|
Tires
|
20x4.0" front / 26x4.0" rear
|
Track width
|
84.5 cm
|
Front brakes
|
Avid BB5 mountain mechanical disc brake
|
Wheel base
|
122 cm
|
Rear brake
|
Avid BB5 mountain mechanical disc brake
|
Ground clearance
|
16.4 cm
|
Brake levers
|
Shimano ST-EF51
|
Bottom seat height
|
35 cm
|
Shifter
|
Shimano ST-EF51 3x8-speed
|
Seat width
|
30 cm
|
Rear derailleur
|
Shimano Tourney FD-TX51
|
Seat depth
|
20 cm
|
Crankset
|
Shimano Tourney FC-TX71 48-38-28T
|
Seat angle
|
45°
|
Cassette
|
Shimano Altus CS-HG31 8-speed 11-34T
|
Turning circle
|
4.5 m
|
Chain
|
Shimano CN-IG51 8 speed
|
Weight
|
30 kg
|
Option (M-F010E)
|
|
Wheel size
|
20" front / 26" rear
|
Motor
|
DAPU 48v 500w rear hub motor
|
Max. load
|
125 kg
|
Battery
|
48v 20Ah lithium battery
|
Rider height
|
160-195 cm
|
Display
|
DAPU LCD display
|
|
|
Crankset
|
DAPU 42T with torque sensor pedal assist
|
